多元线性回归模型举例及Python实现方式
- 一、导入数据
- 二、资料预处理：label-encoding、one hot encoding
- 三、资料与处理：train 、test 训练集-测试集分组
- 四、做特征缩放 Feature Scaling，加速gradient descen
- 五、预测值公式：y_pred=w1*x1 + w2*x2 +w3*x3 +w4*x4 +b
- 六、cost_function 价值函数：找一条最适合的曲线
- 七、设定optimizer gradient-descent 梯度下降函数：根据斜率改变参数
- 八、真实面试者定薪资
比如你做了一个企业想要招人，但是不知道月薪应该定在多少，你做了一个月薪和收入的调研，包括年限、学历、地区和月薪
做一个月薪=w1年限+w2学历+w3*城市+…+b的工作年限和薪资的多元线性模型，然后找出最适合线性模型的直线-成本函数、梯度下降方式，来预估你可以每个月给员工发薪资是的多少
一、导入数据

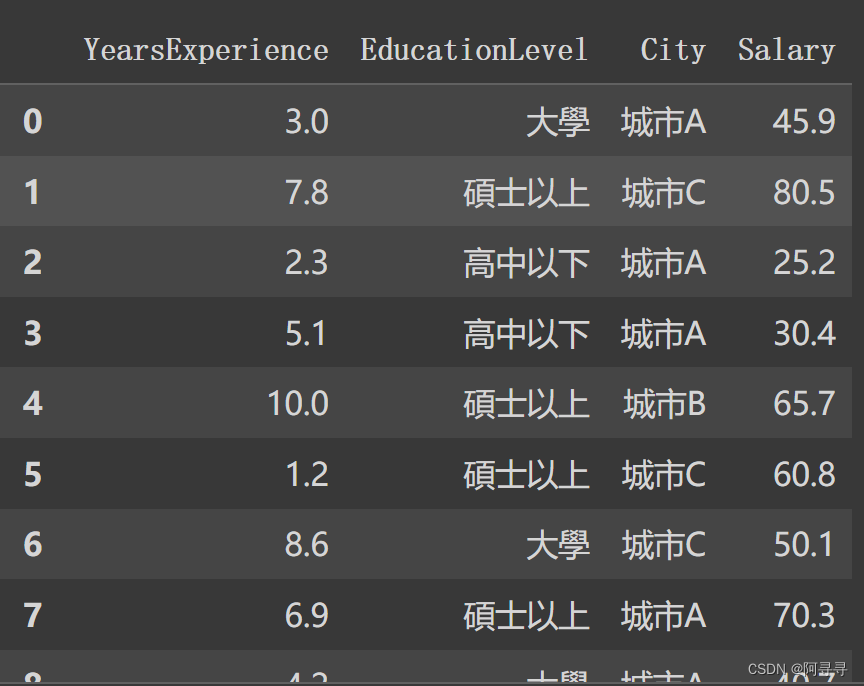

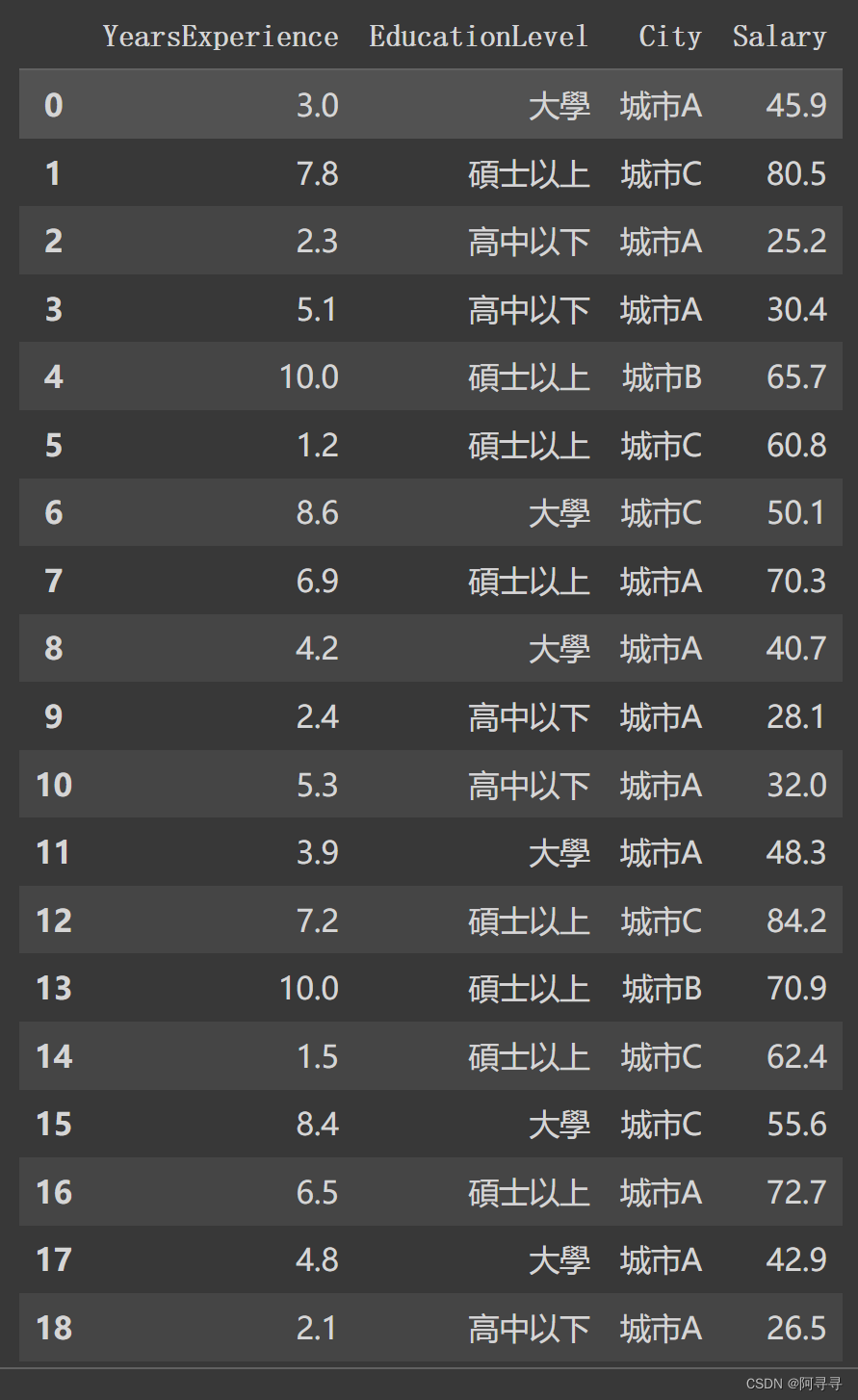

# 导入数据 import pandas as pd url = "https://raw.githubusercontent.com/GrandmaCan/ML/main/Resgression/Salary_Data2.csv" data = pd.read_csv(url) data # # y = w*x + b # x = data["YearsExperience"] # y = data["Salary"]
二、资料预处理：label-encoding、one hot encoding
将学历和城市转化成特征
学历：高中以下 ：0
大学：1
硕士以上：2
城市：one hot encoding 从一个特征转换成多个特征，把城市转换为3个特征，但是过多的特征很浪费运算，我们这里可以换成CityA、CityB、CityC，然后CityC可以从前两城市推算出来，所以可以只留下来CityA、CityB

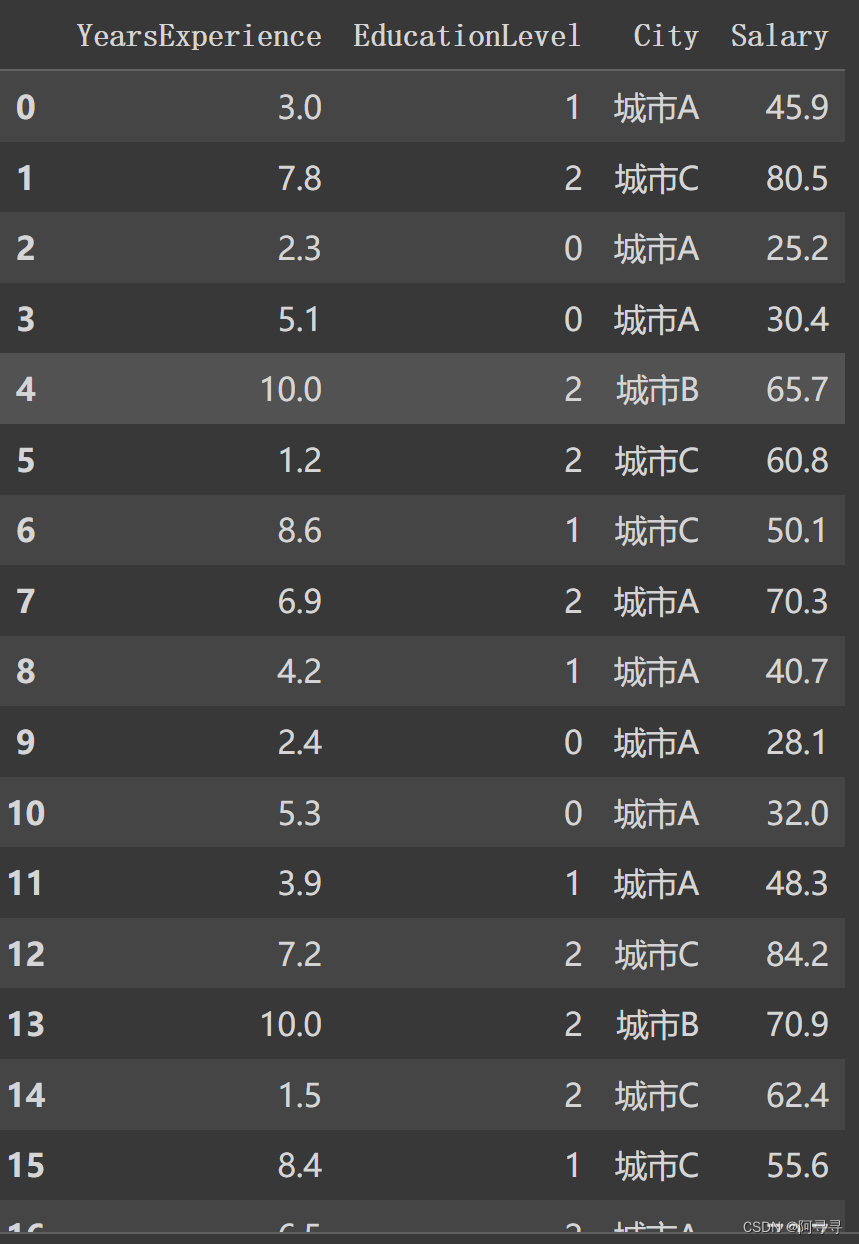

data["EducationLevel"] = data["EducationLevel"].map({"高中以下":0,"大學":1,"碩士以上":2}) data结果

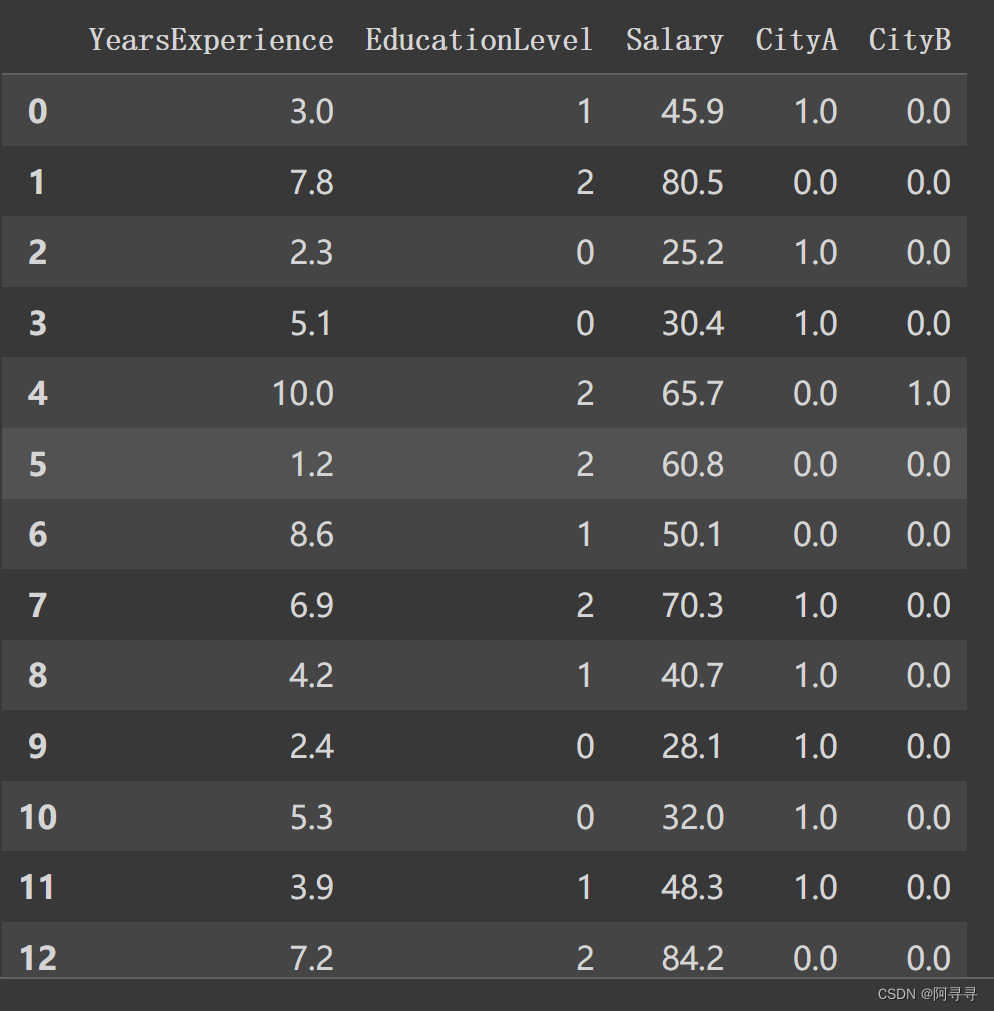

# OneHotEncoder 城市特征转换 from sklearn.preprocessing import OneHotEncoder # sklearn套件 onehot_encoder = OneHotEncoder() onehot_encoder.fit(data[["City"]]) city_encoded = onehot_encoder.transform(data[["City"]]).toarray() city_encoded data[["CityA","CityB","CityC"]] = city_encoded data = data.drop(["City","CityC"],axis=1) # 去掉城市C data
三、资料与处理：train 、test 训练集-测试集分组
，训练集用来找最佳斜率w/b,测试集用来测试最佳斜率
from sklearn.model_selection import train_test_split x = data[["YearsExperience","EducationLevel","CityA","CityB"]] y = data["Salary"] x_train,x_test,y_train,y_test = train_test_split(x,y,test_size=0.2,random_state=87) # len(x),len(x_train),len(x_test) x_train = x_train.to_numpy() x_test = x_test.to_numpy() y_train = y_train.to_numpy() y_test = y_test.to_numpy() x_train
结果
array([[ 4.6, 1. , 1. , 0. ], [ 4.3, 1. , 1. , 0. ], [ 6.1, 2. , 1. , 0. ], [ 3.6, 1. , 1. , 0. ], [ 6.3, 2. , 1. , 0. ], [ 4.8, 1. , 1. , 0. ], [ 7.2, 2. , 0. , 0. ], [10. , 2. , 0. , 1. ], [ 1.8, 2. , 0. , 0. ], [ 2.1, 0. , 1. , 0. ], [ 3.9, 1. , 1. , 0. ], [ 7.6, 2. , 0. , 0. ], [10. , 2. , 0. , 1. ], [ 8.2, 1. , 0. , 0. ], [ 5.1, 0. , 1. , 0. ], [10. , 2. , 0. , 1. ], [ 4.2, 1. , 1. , 0. ], [ 5.3, 0. , 1. , 0. ], [ 1.5, 2. , 0. , 0. ], [ 7.4, 2. , 0. , 0. ], [ 5. , 0. , 1. , 0. ], [ 2.4, 0. , 1. , 0. ], [ 3. , 1. , 1. , 0. ], [ 5.2, 0. , 1. , 0. ], [ 8. , 1. , 0. , 0. ], [ 8.6, 1. , 0. , 0. ], [ 8.4, 1. , 0. , 0. ], [10. , 2. , 0. , 1. ]])四、做特征缩放 Feature Scaling，加速gradient descen
目的让特征大小范围接近，加速gradient descent
特征参数：标准化公式：
（x - mean(x)）/ x标准差
from sklearn.preprocessing import StandardScaler scaler = StandardScaler() scaler.fit(x_train) #看训练集的资料 标准化公式 x_train = scaler.transform(x_train) #转换结果直接替换掉 x_test = scaler.transform(x_test)
五、预测值公式：y_pred=w1x1 + w2x2 +w3x3 +w4x4 +b
import numpy as np # y=w1*x1 + w2*x2 +w3*x3 +w4*x4 +b w = np.array([1,2,3,4]) b = 1 y_pred = (x_train * w).sum(axis=1) + b y_pred
结果
array([10.6, 10.3, 14.1, 9.6, 14.3, 10.8, 12.2, 19. , 6.8, 6.1, 9.9, 12.6, 19. , 11.2, 9.1, 19. , 10.2, 9.3, 6.5, 12.4, 9. , 6.4, 9. , 9.2, 11. , 11.6, 11.4, 19. ]) [71] 0 秒六、cost_function 价值函数：找一条最适合的曲线
公式：月薪 = w1年限 + w2学历 + w3CityA + w4CityB + b
cost = (真是数据-预测值)**2/取平均
((y_train-y_pred)**2).mean() #(真是数据-预测值)**2/取平均
结果
1772.9485714285713
def compute_cost(x,y,w,b): y_pred = (x * w).sum(axis=1) + b cost = ((y-y_pred)**2).mean() return cost
w = np.array([1,2,3,4]) b = 0 compute_cost(x_train,y_train,w,b)
结果
1853.0200000000002
七、设定optimizer gradient-descent 梯度下降函数：根据斜率改变参数
找出最好的w和b
5个参数：
w1 - w1方向斜率学习率 -->求微分后 --> w1方向斜率 = 2x1(y_pred-y)
w2 - w2方向斜率学习率 -->求微分后 --> w2方向斜率 = 2x2(y_pred-y)
w3 - w3方向斜率学习率 -->求微分后 --> w3方向斜率 = 2x3(y_pred-y)
w4 - w4方向斜率学习率 -->求微分后 --> w4方向斜率 = 2x4(y_pred-y)
b - b方向斜率学习率 -->求微分后 --> b方向斜率 = 2(y_pred-y)
y_pred = (x_train * w).sum(axis=1) + b b_gradient = (y_pred-y_train).mean() w_gradient = np.zeros(x_train.shape[1]) #w_gradient for i in range(x_train.shape[1]): w_gradient[i] = (x_train[:,i]*(y_pred-y_train)).mean() w_gradient,b_gradient # w1_gradient = (x_train[:,0]*(y_pred-y_train)).mean() # w2_gradient = (x_train[:,1]*(y_pred-y_train)).mean() # w3_gradient = (x_train[:,2]*(y_pred-y_train)).mean() # w4_gradient = (x_train[:,3]*(y_pred-y_train)).mean() # b_gradient,w1_gradient,w2_gradient,w3_gradient,w4_gradient
结果
array([-252.14928571, -57.51428571, -16.93928571, -6.72857143])
# 定义梯度下降函数 def compute_gradient(x,y,w,b): y_pred = (x * w).sum(axis=1) + b b_gradient = (y_pred-y).mean() # 计算b方向的额斜率 w_gradient = np.zeros(x.shape[1]) #创建一个0的矩阵 #w_gradient for i in range(x.shape[1]): w_gradient[i] = (x[:,i]*(y_pred-y)).mean() # 计算每个w方向的额斜率 return w_gradient,b_gradientw = np.array([1,2,2,4]) b = 1 learning_rate=0.001 w_gradient,b_gradient = compute_gradient(x_train,y_train,w,b) print(compute_cost(x_train,y_train,w,b)) w = w - w_gradient*learning_rate b = b - b_gradient*learning_rate #w,b print(compute_cost(x_train,y_train,w,b))
np.set_printoptions(formatter={'float':'{:.2e}'.format}) def gradient_descent(x, y, w_init, b_init, learning_rate, cost_function, gradient_function, run_inter, p_inter=1000): c_his = [] b_his = [] w_his = [] w = w_init b = b_init for i in range(run_inter): w_gradient,b_gradient = gradient_function(x,y,w,b) w = w-w_gradient*learning_rate b = b-b_gradient*learning_rate cost = cost_function(x,y,w,b) c_his.append(cost) b_his.append(b) w_his.append(w) #w,b if i%p_inter == 0: print(f"Ieration {i:5}: cost {cost:.4e}, w: {w:}, b: {b:.4e}, w_gradient: {w_gradient:}, b_gradient: {b_gradient:.4e}") return w,b,w_his,b_his,c_his# 找到最合适的w,b w_init = np.array([1,2,2,4]) b_init = 0 learning_rate = 1.0e-3 run_inter = 10000 w_final,b_final,w_his,b_his,c_his = gradient_descent(x_train, y_train, w_init, b_init, learning_rate, compute_cost, compute_gradient, run_inter, p_inter=1000)
结果
Ieration 0: cost 2.8048e+03, w: [1.01e+00 2.01e+00 1.99e+00 4.00e+00], b: 5.0950e-02, w_gradient: [-5.35e+00 -1.22e+01 9.62e+00 -1.12e+00], b_gradient: -5.0950e+01 Ieration 1000: cost 4.0918e+02, w: [2.38e+00 8.45e+00 -2.10e+00 2.17e+00], b: 3.2235e+01, w_gradient: [9.88e-02 -3.40e+00 1.41e+00 2.59e+00], b_gradient: -1.8734e+01 Ieration 2000: cost 8.4076e+01, w: [2.28e+00 1.08e+01 -2.79e+00 4.25e-03], b: 4.4068e+01, w_gradient: [7.85e-03 -1.62e+00 2.54e-01 1.70e+00], b_gradient: -6.8884e+00 Ieration 3000: cost 3.6451e+01, w: [2.38e+00 1.20e+01 -2.85e+00 -1.32e+00], b: 4.8420e+01, w_gradient: [-1.89e-01 -9.01e-01 -6.39e-02 1.01e+00], b_gradient: -2.5328e+00 Ieration 4000: cost 2.8488e+01, w: [2.61e+00 1.27e+01 -2.73e+00 -2.11e+00], b: 5.0020e+01, w_gradient: [-2.55e-01 -5.36e-01 -1.71e-01 6.17e-01], b_gradient: -9.3132e-01 Ieration 5000: cost 2.6669e+01, w: [2.87e+00 1.31e+01 -2.54e+00 -2.61e+00], b: 5.0608e+01, w_gradient: [-2.52e-01 -3.37e-01 -1.94e-01 3.95e-01], b_gradient: -3.4244e-01 Ieration 6000: cost 2.6016e+01, w: [3.10e+00 1.34e+01 -2.35e+00 -2.93e+00], b: 5.0824e+01, w_gradient: [-2.23e-01 -2.23e-01 -1.82e-01 2.64e-01], b_gradient: -1.2591e-01 Ieration 7000: cost 2.5691e+01, w: [3.31e+00 1.36e+01 -2.18e+00 -3.15e+00], b: 5.0904e+01, w_gradient: [-1.87e-01 -1.55e-01 -1.58e-01 1.84e-01], b_gradient: -4.6298e-02 Ieration 8000: cost 2.5505e+01, w: [3.48e+00 1.37e+01 -2.04e+00 -3.31e+00], b: 5.0933e+01, w_gradient: [-1.52e-01 -1.12e-01 -1.32e-01 1.32e-01], b_gradient: -1.7024e-02 Ieration 9000: cost 2.5394e+01, w: [3.61e+00 1.38e+01 -1.92e+00 -3.42e+00], b: 5.0944e+01, w_gradient: [-1.22e-01 -8.29e-02 -1.07e-01 9.72e-02], b_gradient: -6.2595e-03 Ieration 10000: cost 2.5327e+01, w: [3.72e+00 1.39e+01 -1.82e+00 -3.51e+00], b: 5.0948e+01, w_gradient: [-9.63e-02 -6.27e-02 -8.62e-02 7.28e-02], b_gradient: -2.3016e-03 Ieration 11000: cost 2.5286e+01, w: [3.81e+00 1.40e+01 -1.74e+00 -3.57e+00], b: 5.0949e+01, w_gradient: [-7.59e-02 -4.80e-02 -6.85e-02 5.53e-02], b_gradient: -8.4628e-04 Ieration 12000: cost 2.5261e+01, w: [3.88e+00 1.40e+01 -1.68e+00 -3.62e+00], b: 5.0950e+01, w_gradient: [-5.95e-02 -3.71e-02 -5.42e-02 4.23e-02], b_gradient: -3.1117e-04 Ieration 13000: cost 2.5246e+01, w: [3.93e+00 1.40e+01 -1.63e+00 -3.65e+00], b: 5.0950e+01, w_gradient: [-4.66e-02 -2.88e-02 -4.27e-02 3.26e-02], b_gradient: -1.1442e-04 Ieration 14000: cost 2.5237e+01, w: [3.97e+00 1.41e+01 -1.60e+00 -3.68e+00], b: 5.0950e+01, w_gradient: [-3.65e-02 -2.25e-02 -3.36e-02 2.53e-02], b_gradient: -4.2071e-05 Ieration 15000: cost 2.5231e+01, w: [4.00e+00 1.41e+01 -1.57e+00 -3.71e+00], b: 5.0950e+01, w_gradient: [-2.85e-02 -1.75e-02 -2.64e-02 1.96e-02], b_gradient: -1.5469e-05 Ieration 16000: cost 2.5227e+01, w: [4.03e+00 1.41e+01 -1.54e+00 -3.72e+00], b: 5.0950e+01, w_gradient: [-2.23e-02 -1.37e-02 -2.07e-02 1.52e-02], b_gradient: -5.6880e-06 Ieration 17000: cost 2.5225e+01, w: [4.05e+00 1.41e+01 -1.52e+00 -3.74e+00], b: 5.0950e+01, w_gradient: [-1.74e-02 -1.07e-02 -1.62e-02 1.19e-02], b_gradient: -2.0914e-06 Ieration 18000: cost 2.5224e+01, w: [4.06e+00 1.41e+01 -1.51e+00 -3.75e+00], b: 5.0950e+01, w_gradient: [-1.36e-02 -8.37e-03 -1.27e-02 9.25e-03], b_gradient: -7.6901e-07 Ieration 19000: cost 2.5223e+01, w: [4.08e+00 1.41e+01 -1.50e+00 -3.76e+00], b: 5.0950e+01, w_gradient: [-1.06e-02 -6.55e-03 -9.92e-03 7.21e-03], b_gradient: -2.8276e-07 Ieration 20000: cost 2.5223e+01, w: [4.08e+00 1.41e+01 -1.49e+00 -3.76e+00], b: 5.0950e+01, w_gradient: [-8.29e-03 -5.12e-03 -7.76e-03 5.63e-03], b_gradient: -1.0397e-07 Ieration 21000: cost 2.5222e+01, w: [4.09e+00 1.41e+01 -1.48e+00 -3.77e+00], b: 5.0950e+01, w_gradient: [-6.48e-03 -4.01e-03 -6.07e-03 4.39e-03], b_gradient: -3.8229e-08 Ieration 22000: cost 2.5222e+01, w: [4.10e+00 1.41e+01 -1.48e+00 -3.77e+00], b: 5.0950e+01, w_gradient: [-5.06e-03 -3.13e-03 -4.75e-03 3.43e-03], b_gradient: -1.4057e-08
print(f"最终w_final : {w_final:}, b_final: {b_final:.2f}")结果
最终w_final : [2.07e+00 2.06e+01 4.16e+00 -5.83e+00], b_final: 12.68
八、真实面试者定薪资
面试的人 7年 本科 城市A
x_real = np.array([[7,1,1,0]]) x_real = scaler.transform(x_real) y_real = (w_final*x_real).sum(axis=1) + b_final y_real
结果：15K
array([1.50e+01])
